Megh Neel - 1000W BLDC Motor, 1500 RPM
| HIGHLIGHTS |

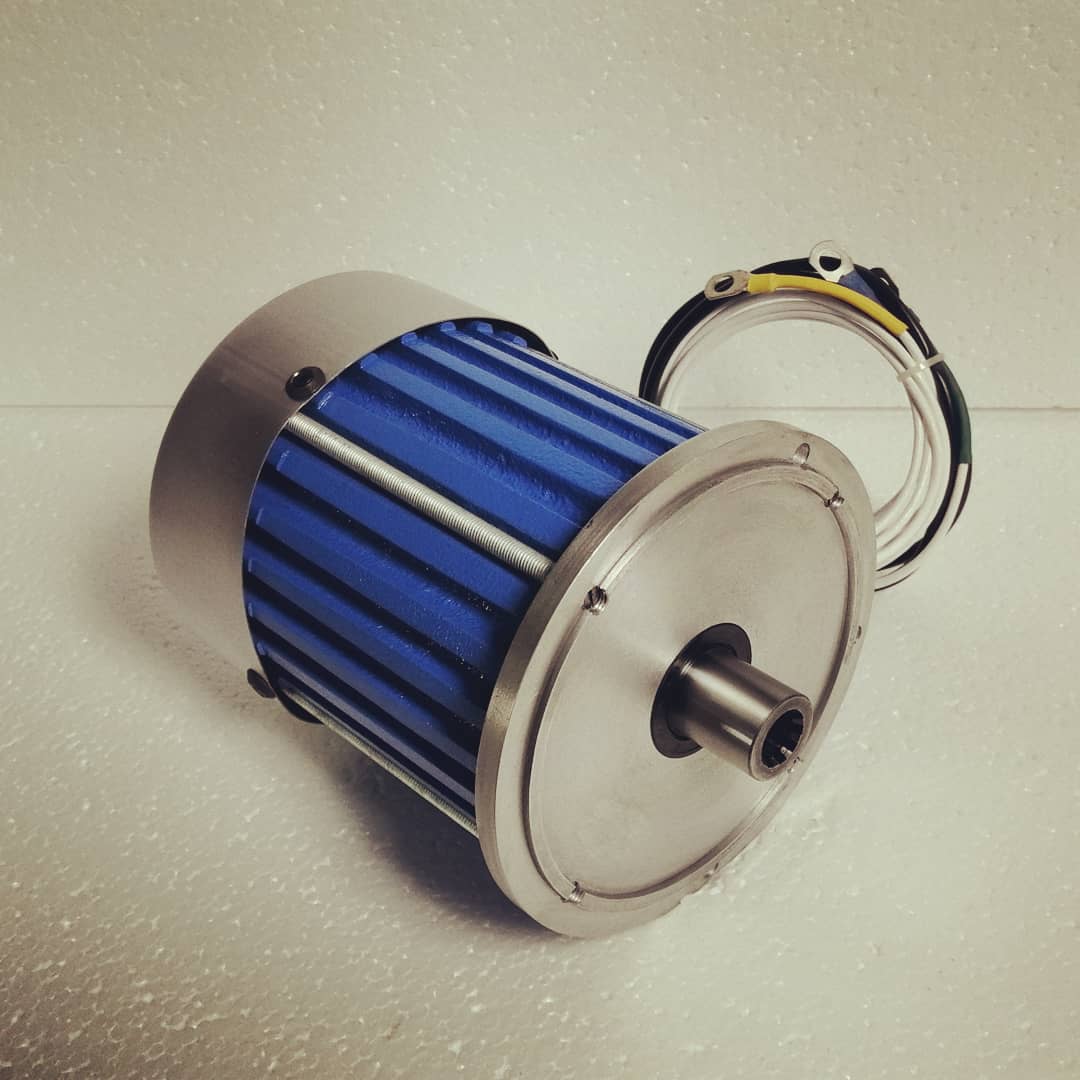

- 1000Watts, 1500 RPM Brushless DC Motor
- In-runner rotor
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Made in Coimbatore, India
- Typical applications include:- Fork Lift, Go Karts, Carts, Wheel Barrow, Industrial Applications, etc.,
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
48 VDC |
60 VDC |
72 VDC |
| Rated Current |
25 A |
17 A |
14 A |
| Rated Power (Output) |
1000 Watts |
| Rated Speed (RPM) |
1500 RPM |
| Rated Torque (Nm) |
6.4 Nm |
| Motor Mounting |
Face / Flange Mounting |
| Shaft Diameter |
14 mm / 19 mm / 24 mm diameter |
| Shaft Length |
30 / 40 / 50 mm length |
| Machine Length (ML) |
200 mm (including fan cowl) |
| Finish |
Powder Coated |
| Dimensions |
|
|
|
Download detailed technical specifications here
|
|
For enquiries contact our sales representatives by writing to sales@meghneel.co.in
|
