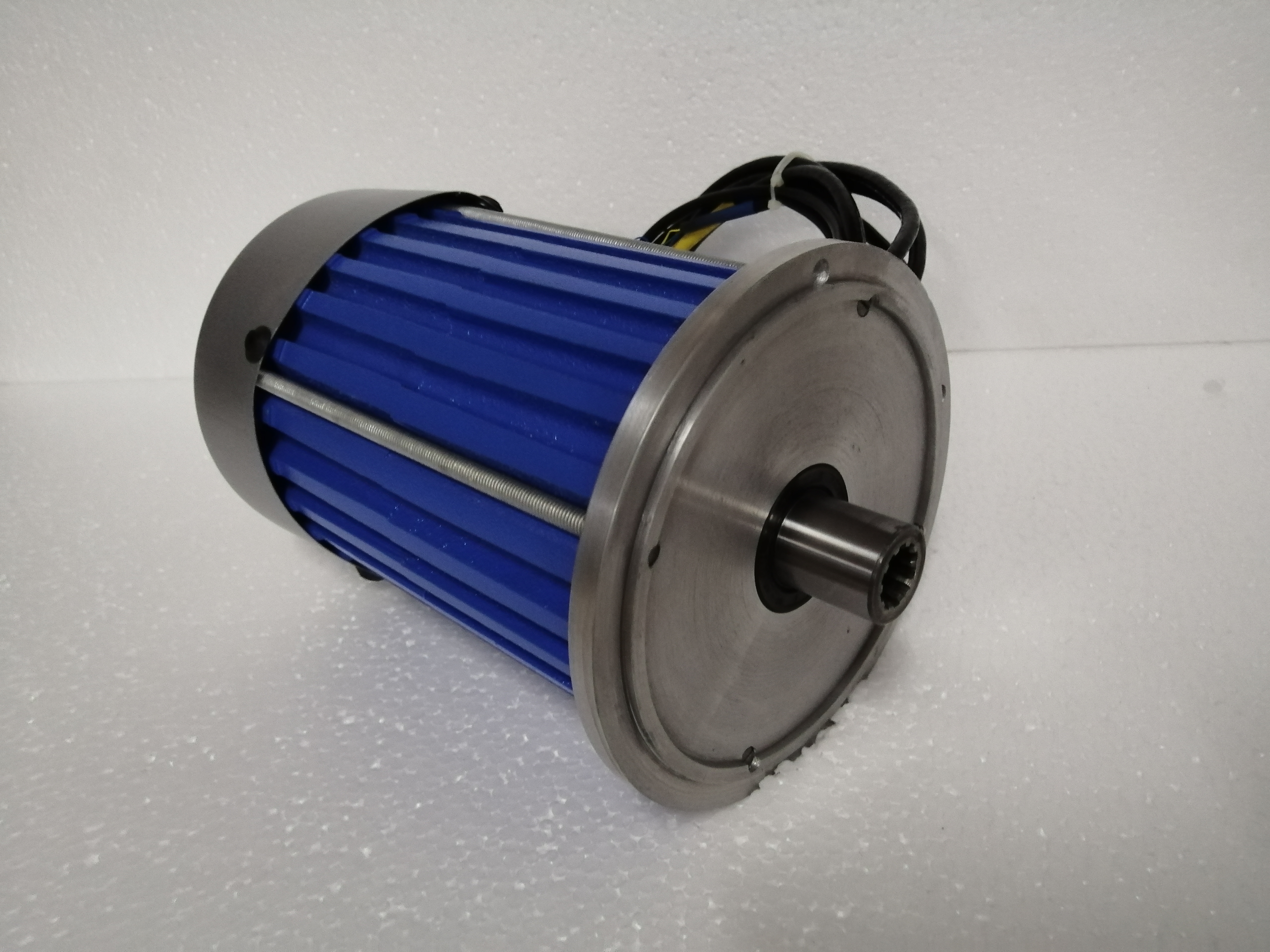

Megh Neel - 3600W BLDC Motor, 3000 RPM

HIGHLIGHTS
  • 3600 Watts (Input), 3000 RPM Brushless DC Motor
  • In-runner rotor
  • Operating temperature up to 80oC
  • External Control with Sensor / sensor-less commutation
  • Insulation Class F
  • Made in Coimbatore, India
  • 1 Year warranty against any manufacturing defects
  • Also available with differential gear box mounting arrangement
  • Typical applications include:- Fork Lift, Go Karts, Carts, Industrial Applications, etc.,
SPECIFICATIONS
Parameter Value
Rated Voltage 48 VDC 60 VDC 72 VDC
Rated Current 75 A 60 A 50 A
Rated Power (Output) 3000 Watts
Rated Speed (RPM) 3000 RPM
Rated Torque (Nm) 6.45 Nm
Motor Mounting Face / Flange Mounting
Shaft Diameter 14 mm / 19 mm / 24 mm diameter
Shaft Length 30 / 40 / 50 mm length
Machine Length (ML) 200 mm (including fan cowl)
Finish Powder Coated
Dimensions



 Download detailed technical specifications here
