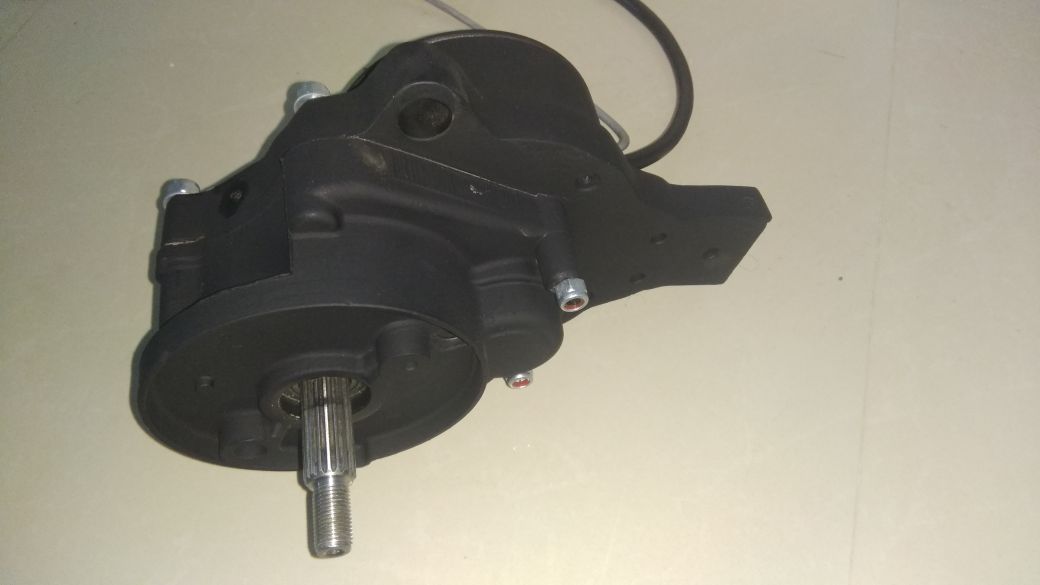

Megh Neel - 250-400W Geared BLDC Motor for electric Scooters
| HIGHLIGHTS |
- 24VDC, 250 to 400 Watts (Input), Brushless DC Motor
- Also can be made available in 36/48 VDC with Power upto 1000 Watts
- In-runner Geared Motor
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Insulation Class F
- Made in Coimbatore, India
- 1 Year warranty against any manufacturing defects
- Specially designed for electric Scooters
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
24 VDC |
| Rated Current |
17 A |
| Rated Power (Output) |
400W (Can be made available upto 1000W) |
| Rated Speed of internal motor (RPM) |
3300 RPM |
| Rated Torque of internal motor (Nm) |
1 Nm |
| Gear Ratio |
10:1 (Reduction) |
| Gear Output RPM |
330 RPM |
| Gear Output Torque |
10 Nm |
| Gear Output Shaft |
18T Splined Shaft with M14 thread |

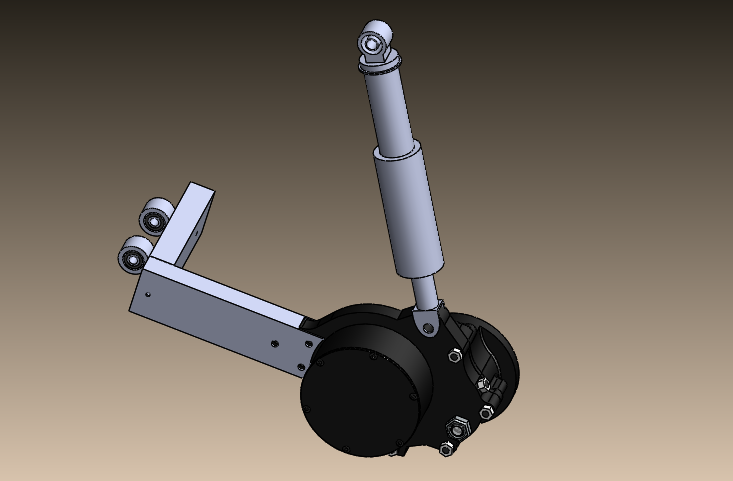

| Motor Mounting |
L Shaped Swing Arm |
| Finish |
Black Powder Coated Finish |
| Dimensions |
|
|
|
Download detailed technical specifications here
|
|
For enquiries contact our sales representatives by writing to sales@meghneel.co.in
|
