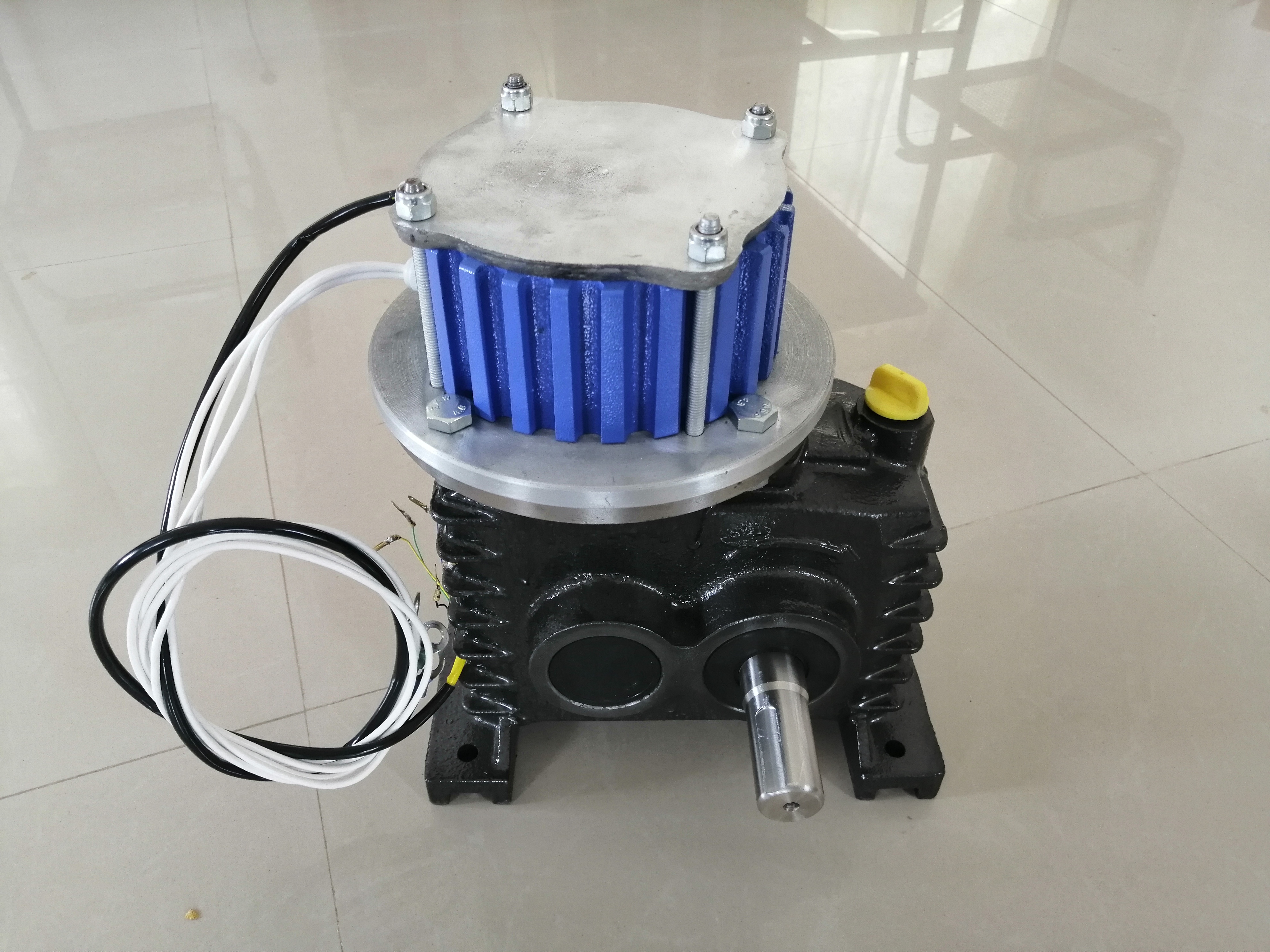

Megh Neel - 420W BLDC Motor, 3000 RPM
| HIGHLIGHTS |
- 420Watts, 3000 RPM Brushless DC Motor
- In-runner rotor
- Operating temperature up to 80oC
- External Control with Sensor / sensor-less commutation
- Available in 24, 36 and 48 VDC
- Splined shaft suitable for aerator gear box
- Made in Coimbatore, India
|
 |
| SPECIFICATIONS |
| Parameter |
Value |
| Rated Voltage |
24VDC |
36VAC |
| Rated Current |
21A |
14 A |
| Rated Power (Input) |
500 Watts |
| Rated Speed (RPM) |
3000 RPM |
| Rated Torque (Nm) |
1.38 Nm |
| Motor Mounting |
Flange Mounting |
| Shaft |
Splined |
| Shaft Length |
20 mm length |
| Finish |
Powder Coated |
| Video |
|
|
|
Download detailed technical specifications here
|
|
For enquiries contact our sales representatives by writing to sales@meghneel.co.in
|
